2PCS 20A 16mm Latching Push Button Switch 12v 24v DC Heavy Duty IP67 Waterproof Marine Switch on Off for Boat, Motorcycle, Truck, RV, Dashboard (Blue LED, Black Shell)
Product details
| Management number | 236843180 | Release Date | 2026/07/10 | List Price | US$7.20 | Model Number | 236843180 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

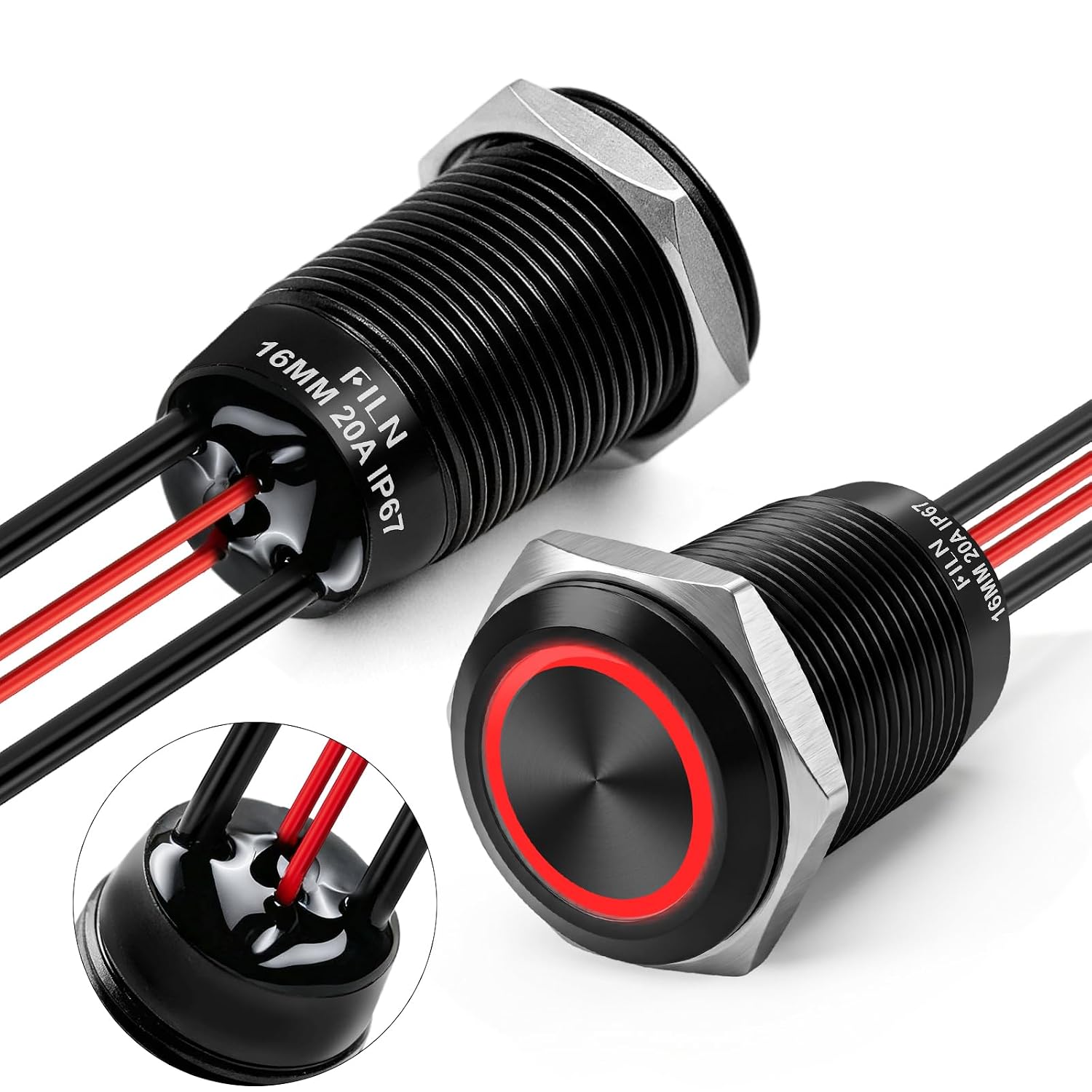

- [Parameter] FILN Pushbutton switch 16mm Voltage: 12V-24V; Current: 20A; Waterproof rating: IP67 Tail epoxy resin potting waterproof; Wire length: 15cm; Power wire:15AWG; LED wire:22AWG; Electrical life: 100,000 cycles (10A), 25,000 cycles (20A); mechanical life: 200,000 cycles.
- [Built-in resistor, ultra-wide voltage range] Equipped with a premium built-in metal film resistor to limit current and stabilize signals , the dual-line LED ring is optimized for 12V-24V DC systems. Notably, the indicator remains operational and will still illuminate down to 3V, though the brightness will scale down at lower voltages. Drawing less than 20 mA , it ensures efficient, flicker-free status tracking without dashboard interference.
- [IP67 fully Waterproof] Built to endure harsh outdoor environments, the switch features complete backend epoxy resin potting to fully seal out moisture, dust, and coastal salt spray. The robust zinc-aluminum alloy housing offers superior impact defense and rust resistance , delivering reliable power control on exposed marine boat dashboards, motorcycle panels, and off-road vehicles.
- [Package] This set includes 2 push button switches, plus nuts, waterproof rings, and a detailed wiring guide.it fits seamlessly into custom dashboards, control panels, and vehicle cockpits. Ideal for DIY enthusiasts and professional installers upgrading electrical systems in trucks, RVs, and marine vessels.
- [Applications] Wide compatibility: can be used to adjust the dashboards of cars, motorbikes and boats , also can be used for household appliances, industrial dashboards, automated machinery, test equipment, marine bilge pumps, off-road LED light, RV power modifications, and truck dashboard electronics.
| ASIN | B0H2LFLW69 |
|---|---|
| Color | Blue |
| Model | FLM16-FW-6-A10Z4-BB12V-24V |
| Wattage | 480 watts |
| Terminal | Through Hole |
| Brand Name | FILN |
| Unit Count | 1.0 Count |
| Part Number | FLM16-FW-6-A10Z4-BB12V-24V |
| Switch Type | Push Button |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Manufacturer | FILN |
| Material Type | Metal, Zinc Aluminum Alloy |
| Mounting Type | Panel Mount |
| Connector Type | Plug In |
| Control Method | Push Button |
| Current Rating | 20 Amps |
| Operation Mode | ON-OFF |
| Item Dimensions | 5.12 x 3.54 x 0.63 inches |
| Number of Items | 2 |
| Contact Material | Copper |
| Operating Voltage | 24 Volts |
| Specification Met | CE, UL |
| Included Components | Instruction Manual |
| Number of Positions | 1 |
| Warranty Description | 2 Year Manufacturer |
| Upper Temperature Rating | 85 Degrees Celsius |
| International Protection Rating | IP67 |
